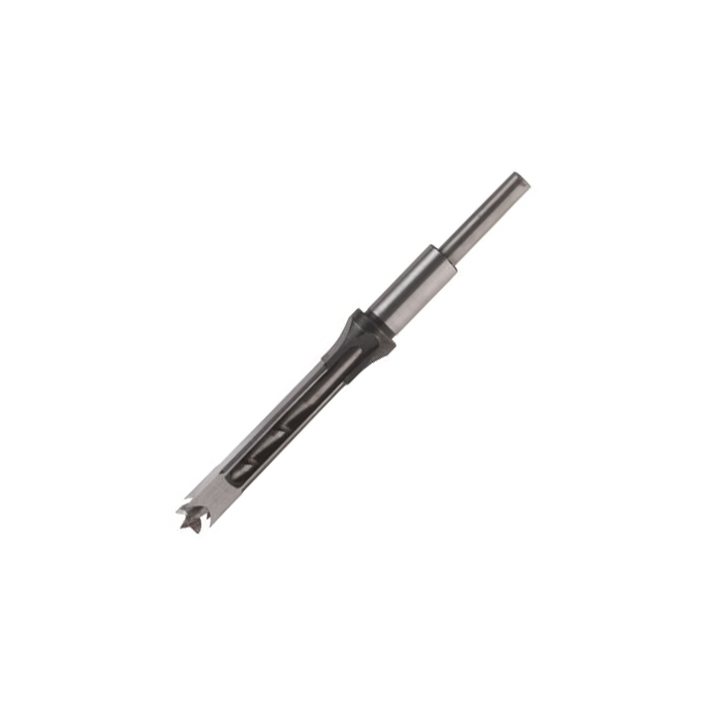

Chisel & Bits

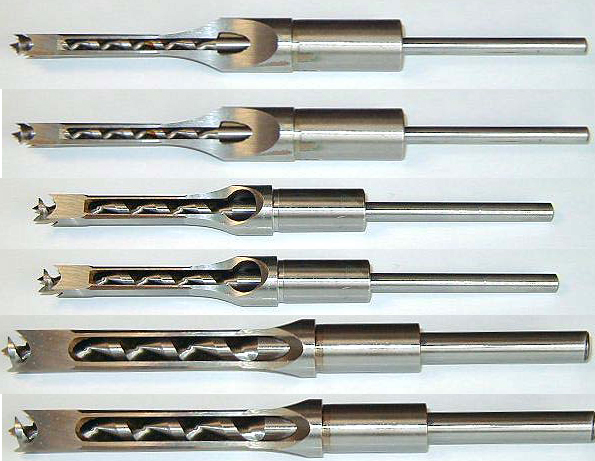

Various sizes from 1/4" to 1"

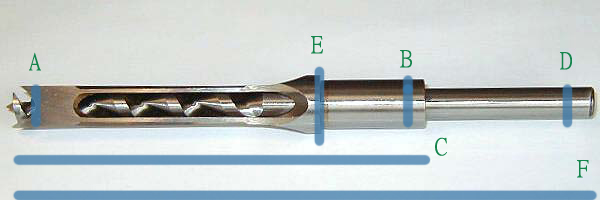

Specification:

A B C D F E
1/4" 20.58mm ~ 20.59mm 133mm 4.4mm 210mm 20mm
5/16" 20.58mm ~ 20.59mm 138mm 5.9mm 210mm 20mm
3/8" 20.58mm ~ 20.59mm 138mm 7.0mm 210mm 20mm
7/16" 20.58mm ~ 20.59mm 138mm 8.4mm 220mm 22mm
1/2" 20.58mm ~ 20.59mm 138mm 9.4mm 210mm 20mm
9/16" 20.58mm ~ 20.59mm 156mm 10.5mm 225mm 23mm
5/8" 20.58mm ~ 20.59mm 156mm 11.9mm 225mm 23mm
3/4" 20.58mm ~ 20.59mm 163mm 11.9mm 240mm 29mm
1" 30.16mm 190mm 12.5mm 275mm 36mm
