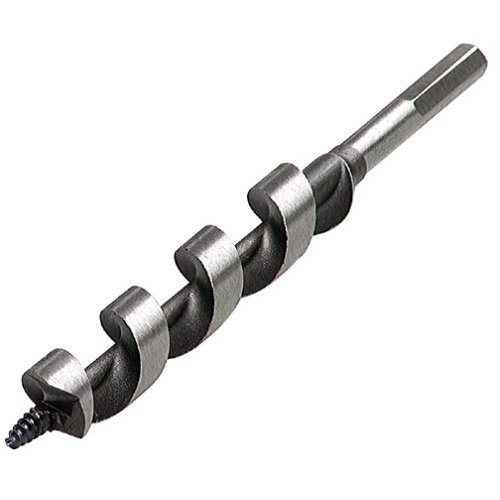

Auger Bits

Metric / Imperial sizes for you reference

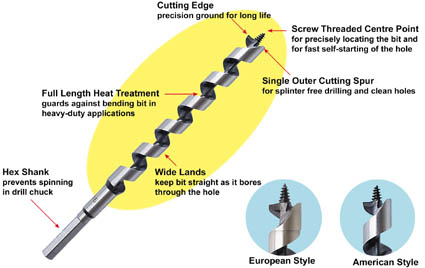

1. Auger Bit with Hex Shank

l           Made of High carbon steel

l           With threaded tip

l           Drilling in soft and hard wood, large section beam, chipboard and plywood

l           Dia. 6 -35mm; 1/4 to 1-3/8"

l           Length: 100~600mm; 4"~24"

l           Other overall length available upon request

@

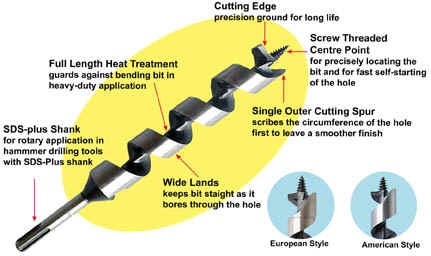

2. Auger Bit with SDS Plus Shank

l           Made of High carbon steel

l           With threaded tip

l           Drilling in soft and hard wood, large section beam, chipboard and plywood

l           Dia. 6 -35mm; 1/4 to 1-3/8"

l           Length: 100~600mm; 4"~24"

l           Other overall length available upon request

@

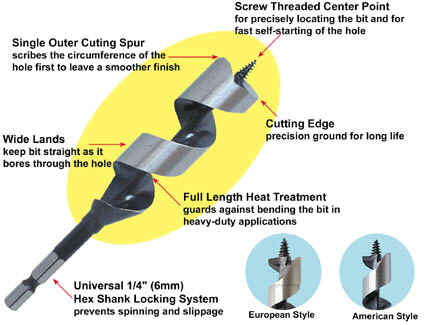

3. Auger Bit with 1/4"Hex Shank

l           Made of High carbon steel

l           With threaded tip

l           Drilling in soft and hard wood, large section beam, chipboard and plywood

l           Dia. 6 -35mm; 1/4 to 1-3/8"

l           Length: 100~600mm; 4"~24"

l           Other overall length available upon request

@

a. Overall Length in Detail :

  • 100mm+150mm+200mm+300mm+400mm+600mm

  • 4"+6"+8"+12"+16"+24"

b. Cutting Diameter in Detail :

  • 6mm, 8mm, 10mm, 12mm, 13mm, 14mm, 16mm, 18mm, 19mm, 20mm, 22mm, 24mm,25mm, 28mm, 30mm, 32mm, 35mm

  • 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1", 1 1/16",1 1/8", 1 1/4", 1 3/8".

c. Fast Easy Removal of Chips

d. For use in Hand Brace or 10mm(3/8") and Larger Electric Drills
